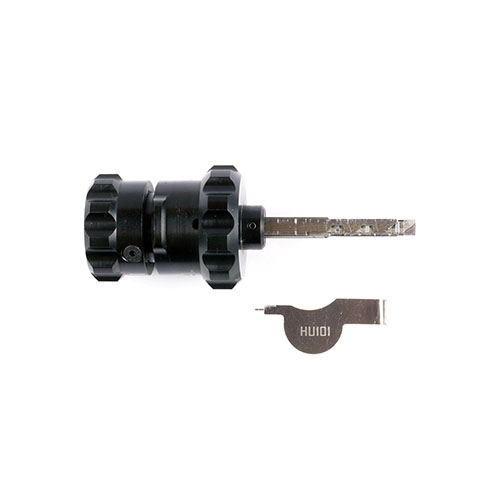

Easy Tool Ivaylov HU101 Rover Ford Volvo Jaguar

Image of Easy Tool Ivaylov HU101 Rover Ford Volvo Jaguar Image of Easy Tool Ivaylov HU101 Rover Ford Volvo Jaguar

Price: 350.00 €
Excl.Tax (20%)

Available: Yes


This is the new patent holding innovation called EASY TOOL IVAYLOV HU101.

In absolute every situation where the key is missing, EasyTool Ivaylov HU101 makes it possible to unlock & decode one of the most complicated HU101 locks.

Therefore, Easy Tool Ivaylov HU101 can be applicated on models of Land Rover, Ford, Ford USA, Ford Australia, Ford Suda Afrika, Volvo and Jaguar.

For more details on the product, please see the description below!


Description of EasyTool Ivaylov HU101

HU101 lock types are one of the most difficult locks. The one and only professional solution to open locked HU101 locks quickly is our mechanical tool called ‘’EasyTool Ivaylov HU101. This professional locksmith tool is constructed with 10 spaces and 5 depths. Depth 5 is the deepest cut and depth 1 is the shallowest cut. One of the biggest advantages of the EasyTool Ivaylov HU101 is that it can identify and adjust itself completely to the different height of each of the 10 spaces.

That is how we have made it possible to unlock and decode complex HU101 locks very fast!


Easy Tool Ivaylov HU101 is suitable for:



    •  Land Rover Discovery- from 2006 onwards
    •  Range Rover- from 2005 onwards




    • Ford Fiesta- from 2008 onwards
    • Ford Focus-2004 onwards
    • Ford Focus C Max- from 2003 onwards
    • Ford Galaxy- from 2006
    • Ford KUGA- from 2008 onwards
    • Ford Mondeo- from 2007 onwards
    • Ford S Max- from 2006 onwards
    • Ford Transit- from 2015 onwards




    • Ford Fiesta- from 2010 onwards




    • Ford Falcon FG- from 2008 onwards
    • Ford Falcon BF- from 2005 to 2008
    • Ford Focus- from 2005 onwards
    • Ford Territory- from 2005 onwards




    • Ford Mondeo- from 2007 onwards




    • Volvo S40- from 2004
    • Volvo V50- from 2004



    • Jaguar XK (X150) emergency key- from 2006 onwards
    • Most models of Jaguar after 2007


All about the unlocking process:


The general unlocking process is easy and quick. To ensure a smooth operation and the desired result there are four steps which need to be followed by the operator.

But before doing so, one needs to be familiar with the structure of theEasyTool Ivaylov HU101:

EasyTool Ivaylov HU101 is constructed with two main parts: The passkey (being on top of the EasyTool Ivaylov HU101) with its 10 pins, and the bottom part consisting of three parts being 1. Tension wheel, 2. Gate and 3. BACK wheel (listed in their hierarchical order from top to bottom).

As the name ‘’Tension wheel’’ suggests, the tension of the operator is during the unlocking process of highest importance. Here, the operator needs to find a ‘’middle tension’’ during the opening process since a weak tension would not lead to an unlocking of the HU101 lock while a strong tension would only break or deform the tool.

The only thing one needs to do is to follow precisely four easy steps:


1. First step- Reset the Easy Tool Ivaylov HU101:


Before starting the main unlocking process, there is one preparational step left: The resetting of the EasyTool Ivaylov HU101 or more precise the resetting of the pins on the tool!

For this step turn the BACK wheel all the way to the right and push the gate towards the tension wheel to close the gate. Then take the reset tool and push it down against each of the 10 holes of the EasyTool Ivaylov HU101. The operator should find the 10 holes on the upper part of the tool (the passkey)- 6 holes on the first side and another 4 on the other side. This procedure serves to reset the 10 pins. If all pins are aligned, the EasyTool Ivaylov HU101 is ready for the second step!


2. Second step- Inserting the Easy Tool Ivaylov HU101 into the lock:


For the second step one needs to push the gate towards the tension wheel to close the gate. Then the BACK wheel needs to be turned all the way to the right and lastly the EasyTool Ivaylov HU101 needs to be inserted into the given lock. Make sure that during the whole inserting procedure, the gate is fully closed! Once the EasyTool Ivaylov HU101 is in the lock, open the gate again by pushing it away from the tension wheel to lock it.


3. Third step- Gate on the right or wrong side?


For a smooth unlocking operation, it is very important to have inserted the EasyTool Ivaylov HU101 correctly. Therefore, to ensure the correct side, insert the EasyTool Ivaylov HU101 inside the HU101 lock and push the BACK wheel.

If the Gate pops out while pushing the BACK wheel, your EasyTool Ivaylov HU101 has been inserted incorrectly. In the case that the Gate has not popped out, you can continue with the fourth step, the main unlocking process.


4. Fourth step- the unlocking process:


On this stage you have already completed all preparational steps and the EasyTool Ivaylov HU101 is ready for the main unlocking procedure.

Therefore, the first step is to turn the tension wheel all the way to the left and to keep holding it there. While doing so, turn the BACK wheel to the left until the stop point is reached. Having reached the stop point, jiggle it a little bit before turning the BACK wheel into its original position (move it to the right). The following step is then to turn and hold the tension wheel to the right, while turning the BACK wheel to the left until the stop point is reached. If the stop point is reached, jiggle it again a little bit before turning it once again into its original position.

This procedure should be repeated 5 to 30 times. The result is an open HU101 lock!

Looking for a more visualized way of the unlocking procedure? Then see below our full explanatory video!


What is in for you?


  • Quick unlocking and decoding process
  • Simple handling
  • Professionally unlocking and decoding HU101 locks
  • No damages


Shipment information of the product


The company Ivaylov ensures their customers the fastest and safest delivery process thanks to their cooperation with   !

After the successful completion of our customer’s desired order, the shipment duration takes about 1-4 days.

For additional information please contact info@ivaylov.com .


Why Ivaylov?


We are Ivaylov- the locksmith company who meets customers’ needs!

The company ’’Ivaylov’’ stands for its high product quality, its safe product shipments but most importantly for its reliability! Our highest goal is to produce unique locksmith tools for our clients which facilitate a quick and safe operational process!

Therefore, we test every tool for possible manufacturing mistakes. Additionally, all tools produced at our company carry a one year warranty. In cases of unintended small defects on our products, the company will repair them immediately- without any additional costs! If the tool seems to be unrepairable, compensation possibilities will be discussed with the customer. With this method we can guarantee happy customers receiving only good quality products.

Because only if we have fully satisfied our loyal customers, we have done our jobs right!

Most Popular

Easy Tool Ivaylov HY22 Hyundai / Kia

Easy Tool Ivaylov HY22 Hyundai / Kia

350.00 €

SIP22 Easy Tool Ivaylov FIAT /ALFA ROMEO

SIP22 Easy Tool Ivaylov FIAT /ALFA ROMEO

350.00 €

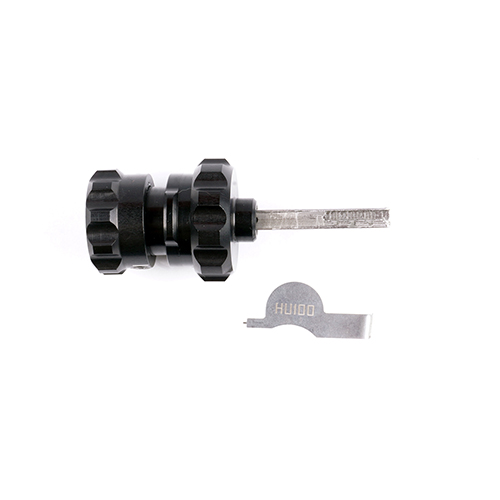

Easy Tool Ivaylov HU100 Opel and Chevrolet
